| Lugar de origen: | Porcelana |
| Nombre de la marca: | ECHO |
| Certificación: | ISO9001 |
| Número de modelo: | HY-ZDLBJ004 |
| Cantidad de orden mínima: | 1 conjuntos |
|---|---|
| Precio: | USD55500-USD59000 |
| Detalles de empaquetado: | 1.Fuera: cartones de madera 2. Dentro: bolsa de plástico 3. Según las necesidades del cliente. |
| Tiempo de entrega: | 60-65 DÍAS CONTRA EL PI |
| Condiciones de pago: | T/T 50% como depósito, saldo antes de la entrega |
| Capacidad de la fuente: | 20 juegos por mes |
| Condición: | NUEVO | Tipo: | Máquina para hacer lápices pastel de aceite |
|---|---|---|---|
| Material: | Acero carbono | Característica de material: | Resistente al calor |
| Voltaje: | 220/380V | Potencia(w): | 14kw |
| Dimensión (largo* ancho* alto): | 1.8m × 1,4m × 1,9m | Garantía: | 12 meses |
| Uso: | Máquina para hacer pasteles de aceite | Servicio postventa proporcionado: | soporte en línea |
| Servicio postgarantía: | Soporte técnico de video, soporte en línea, repuestos | Industrias aplicables: | Planta de fabricación |
| Producción: | ≥25000 unidades/hora |
Technical Parameters
Description
1. Automatic melting, automatic injection, automatic shoveling, automatic pen output; 2. The mold is made by CNC, and the pen tube is made of die-cast alloy tube, which is smooth and easy to cool, and easy to demold; 3. The cooling water adopts a one-inch rotating joint, and there is a partition in the middle of the mold, so that the water flow is discharged from bottom to top, from inside to outside, from outside to inside and then to the middle to ensure uniform cooling of each pipe. 4. The pen is pushed out by the cylinder to push the bamboo fiber top pen to ensure that it will not damage the mold and achieve the best even reading demolding effect; 5. Appearance of the machine: the frame is painted and the door panel is made of stainless steel for easy cleaning.

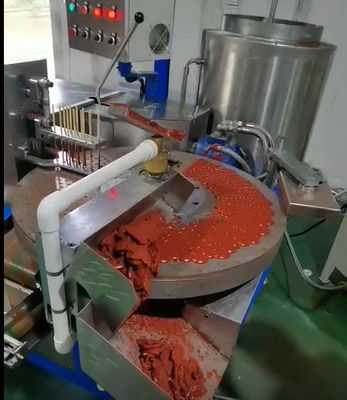

| 1.Machine functions: rotating mold, automatic spraying of release agent, automatic injection, automatic scraping of excess material, return of excess material to pot, automatic top pen, automatic pen receiving, and automatic pack the crayon to box | ||||

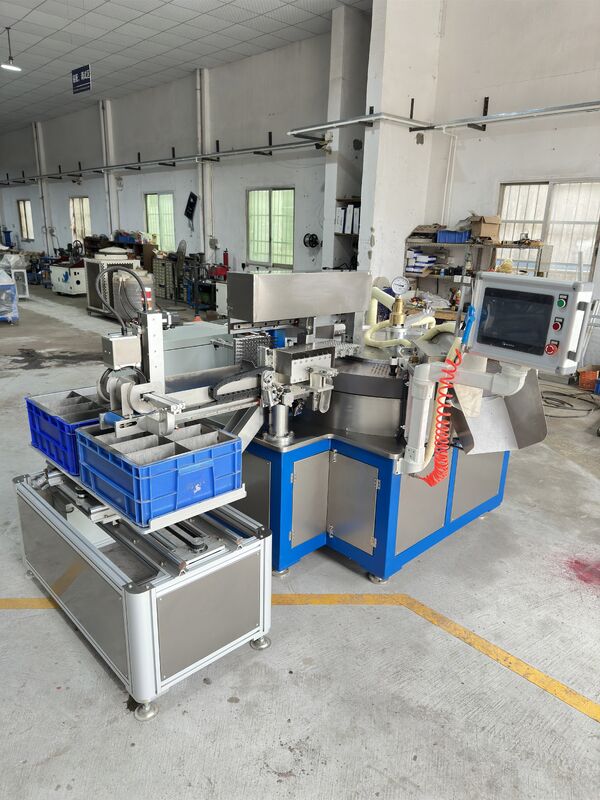

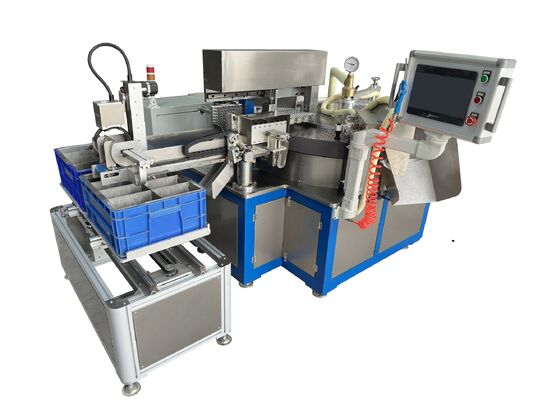

| 2. Machine configuration: One rotary molding machine (100L with heating, stirring, and oil pump storage pot), one packing platform (suitable for box size 350 × 470 industrial plastic basket), and one control cabinet for the entire machine; As shown in the picture! | ||||
| 3 . Crayon mold arrangement: disc mold design, with 16 plates arranged around the crayon mold per week, | ||||
| 5. Copper tube sealing method: It is precisely matched with an "O" - shaped sealing ring, without glue or soldering; | ||||
| 6. Crayon length adjustable range: hardware adjustment required | ||||
| 7. Machine power: maximum 20KW; appearance: length 3100 x width 1800 x height 1600mm; weight: net weight approximately 2300KG, including export wooden box packaging, total weight approximately 2620KG | ||||
| 8. Suitable power supply: three-phase 380V 50HZ power supply, total power: 20KW; | ||||
| 9. Cold water requirements: 1.5-inch inlet and outlet pipes, suitable water temperature maintained at 18 ° -20 ° C; | ||||
| 10. Design production capacity: 25000 crayons per hour (actual speed determined by formula and water cooling speed). | ||||
| Technical parameter | |
| Shape specification: | long 1.8m ×wide1.4m ×high1.9m |
| Weight: | 950KG |
| Power Supply: | Three phase 220/380V |
| Power: | 14KW |
| Production effciency: | ≥25000/hour |
Features:
1. Space segmentation used Taiwan Famous Brands , with turntable with turntable rotary station ,sharpener the pencil speedily , quality stable , small
Boost your crayon production by 240% with our automated machine! Outperforming manual methods in both speed and efficiency, it slashes production time and labor costs - making it the smartest choice for crayon manufacturers
240% productivity improvement Time-saving benefits Labor cost reduction Positioning as the ideal manufacturing solution
Production details
1 SET/ POLYWOOD CASE
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
1. We have very more experience in export business.
2. All of our products comply with international quality standards.
3.We can do customer’s design and requirement
4. We mainly export to Europe , Americal , South Americal, Africa, the Middle East. Australia, New Zealand etc.
